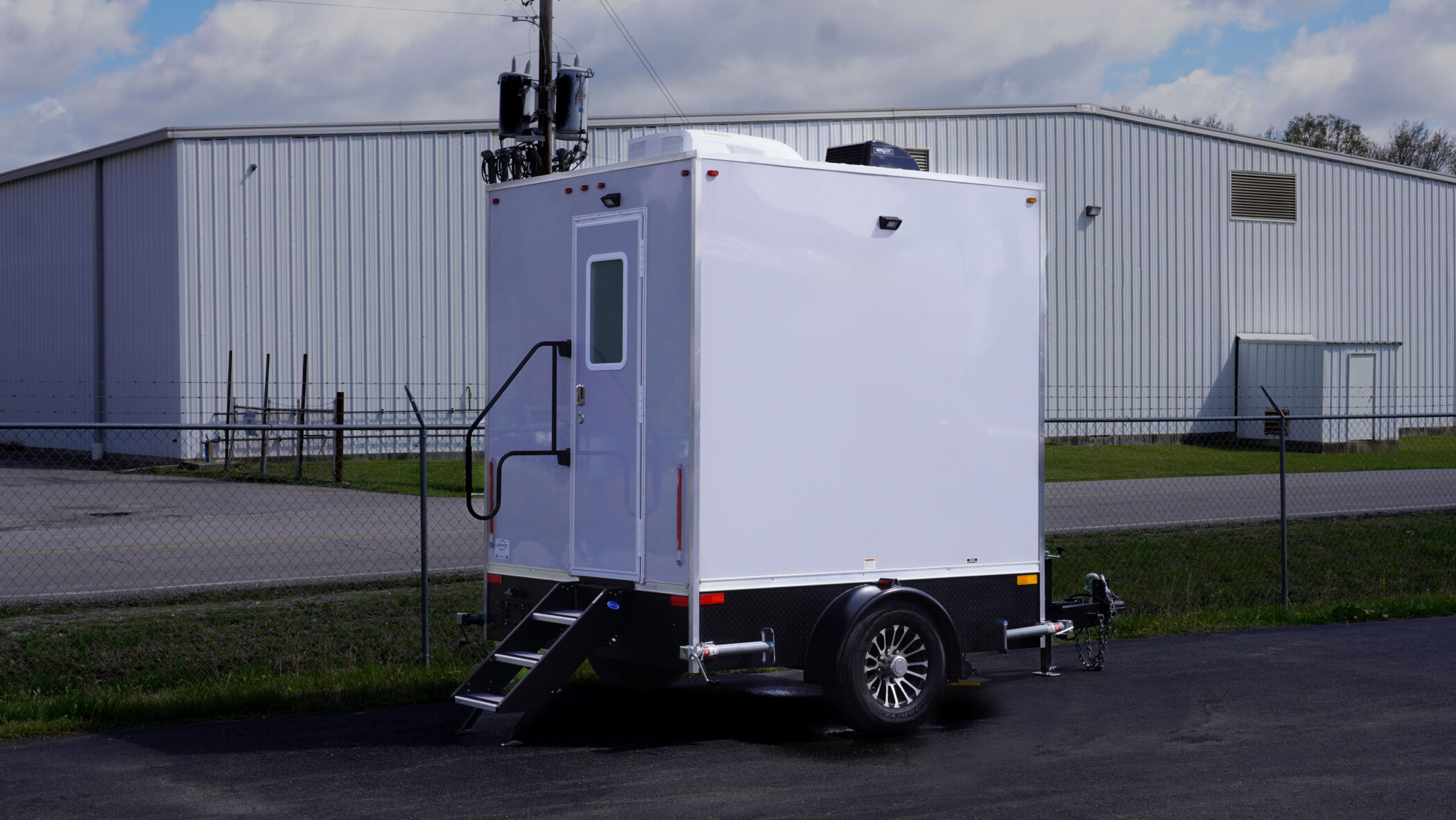

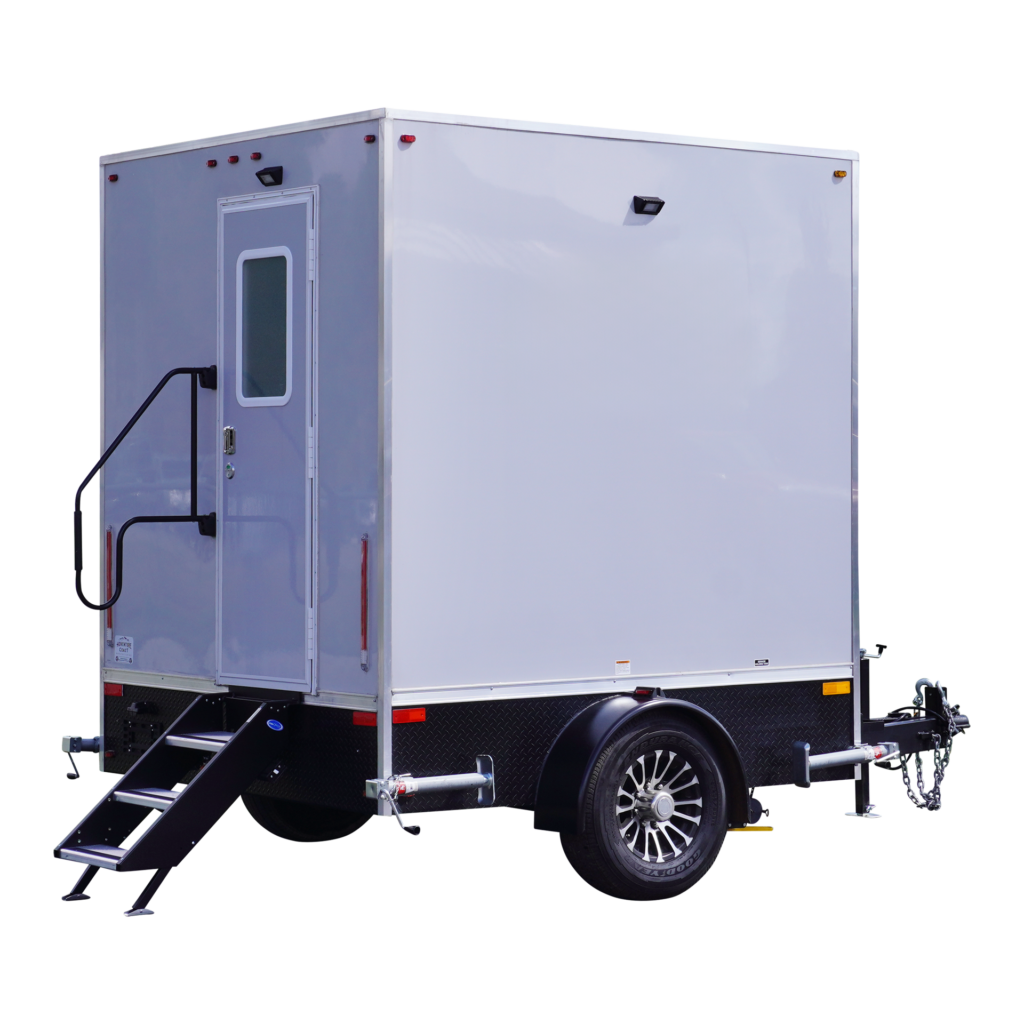

single stall

restroom Trailer

About this unit

Compact and durable without giving up the creature comforts of a residential restroom. Like all of our units, this restroom trailer comes standard with a 5 year structural warranty. Whether you are looking to have your trailer on the go day in and day out, or sitting on the job site for months on end, we stand by the fact that this a piece of equipment that is built to last.

click here to get an estimate

take a closer

look

standard features

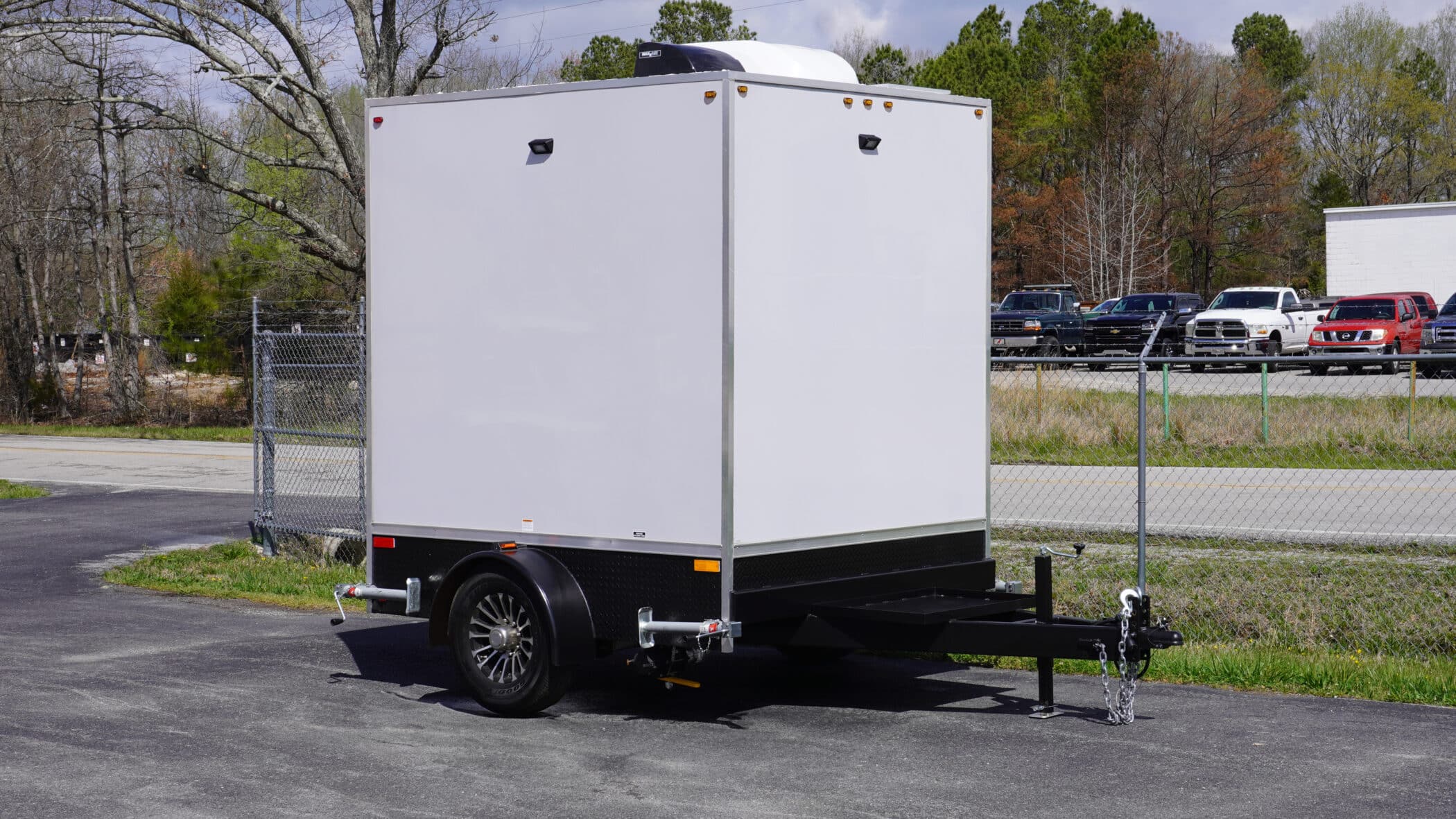

Chassis & Suspension

Weather Resistant Powder Coated Chassis
60″ Extended A-Frame Tongue
A – Frame Mounted Generator Tray
(1) 6,000 lbs Torsion Axle with electric brakes
(2) Aluminum Wheels with Goodyear Endurance Tires
Spare Tire on a Steel Wheel

Frame & Exterior

Full Steel Skeleton Frame
Walls – Coated Fiberglass
Roof – One Piece EPDM / PVC Hybrid Roof
Aluminum Trim & Corner Caps
(4) Exterior LED Overhead Lights
Diamond Plated Steel Stone Guard
(1) Morryde Push Tab Adjustable Steps

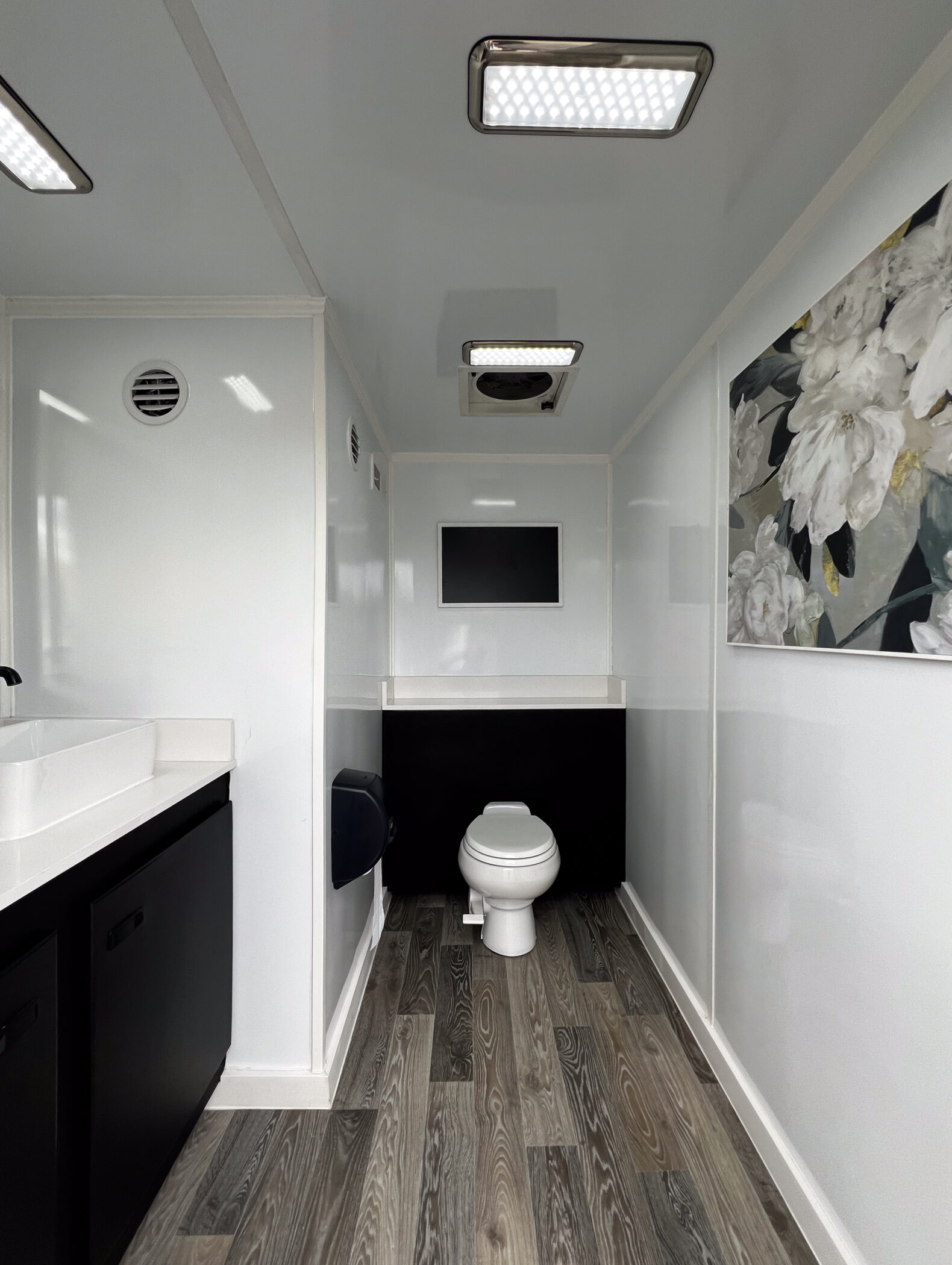

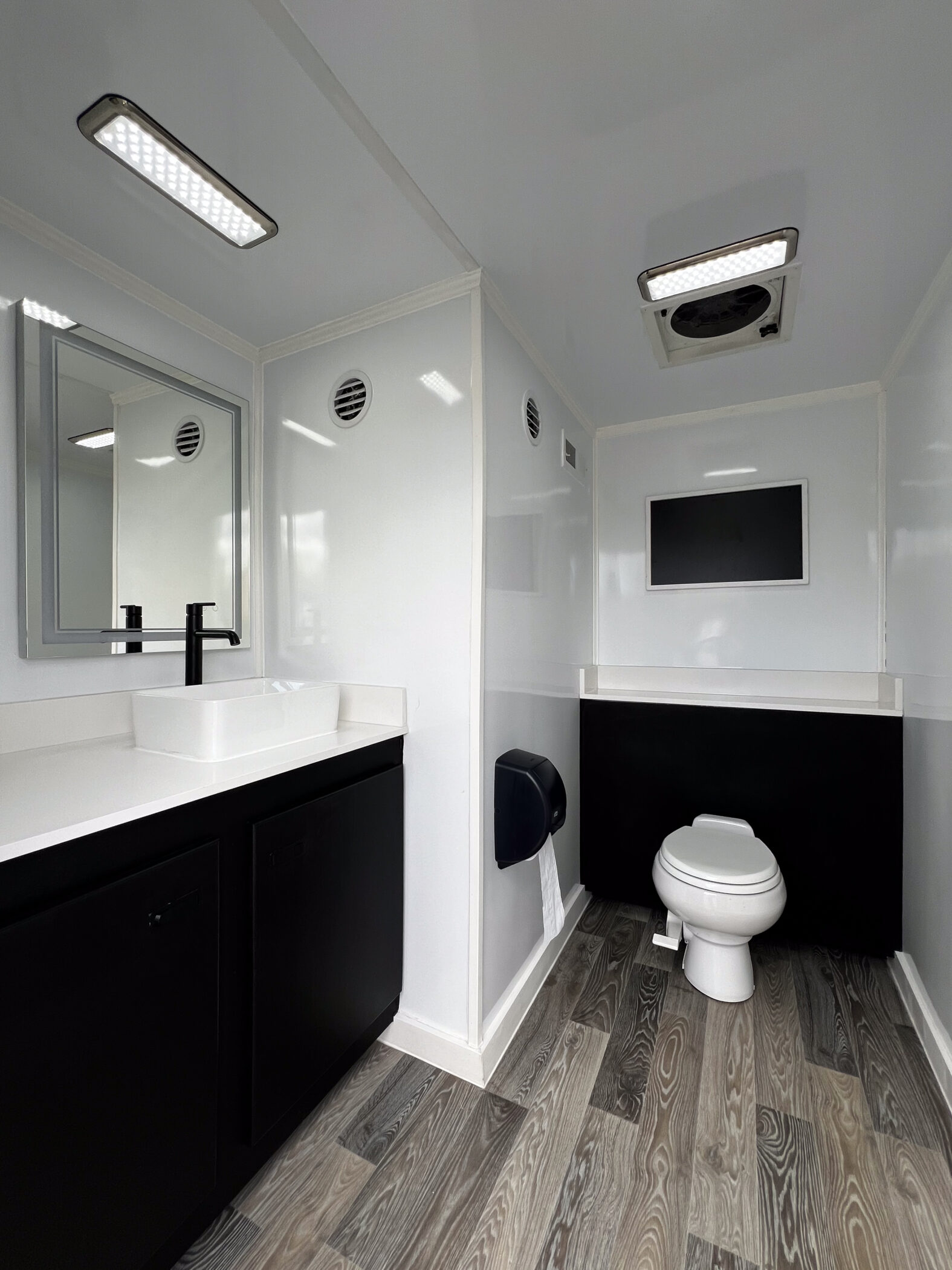

Interior

Quartz Counter Tops – Color Options Available
Vinyl Flooring – Color Options Available
Water Resistant Paneling
LED Lights
(1) Roof Vent with Maxxair Cover

Hookups

Shore Power: (2) 30 AMP

Water: Tank Fill

Solar, Electrical, & HVAC

Solar Power Kit with Battery Tender
(2) 30 AMP Breaker Box with (1) 30 AMP Converter
12v Fuse Panel
(1) 12v Battery with Battery Disconnect Switch
(1) Roof Top A/C (15,000 BTU Cooling & 12,000 BTU Heating)

Restroom & Plumbing

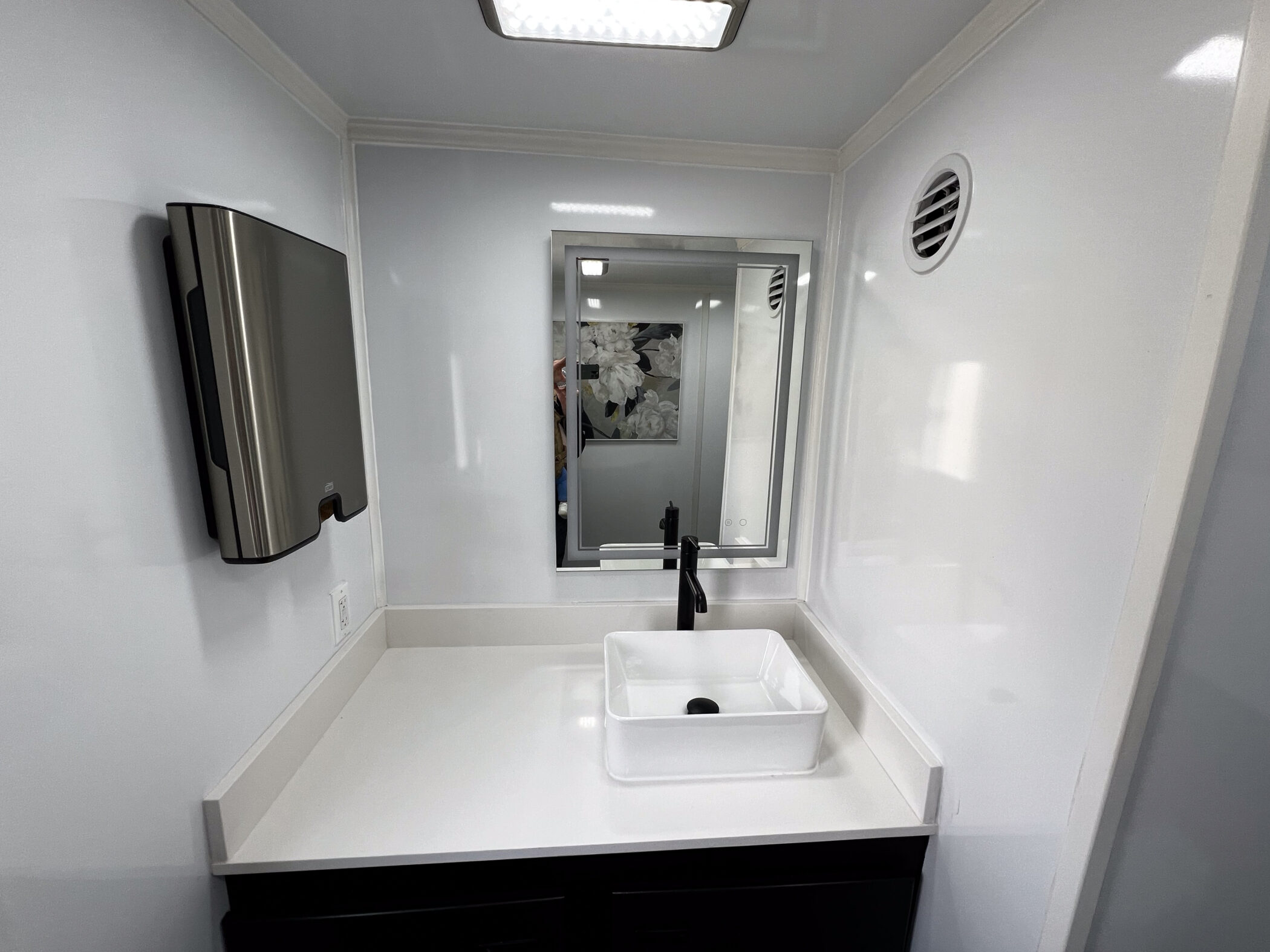

(1) Porcelain Sink – Vessel Bowl
(1) Delta Faucet with Lifetime Warranty
(1) Touchscreen LED Backlit Mirror

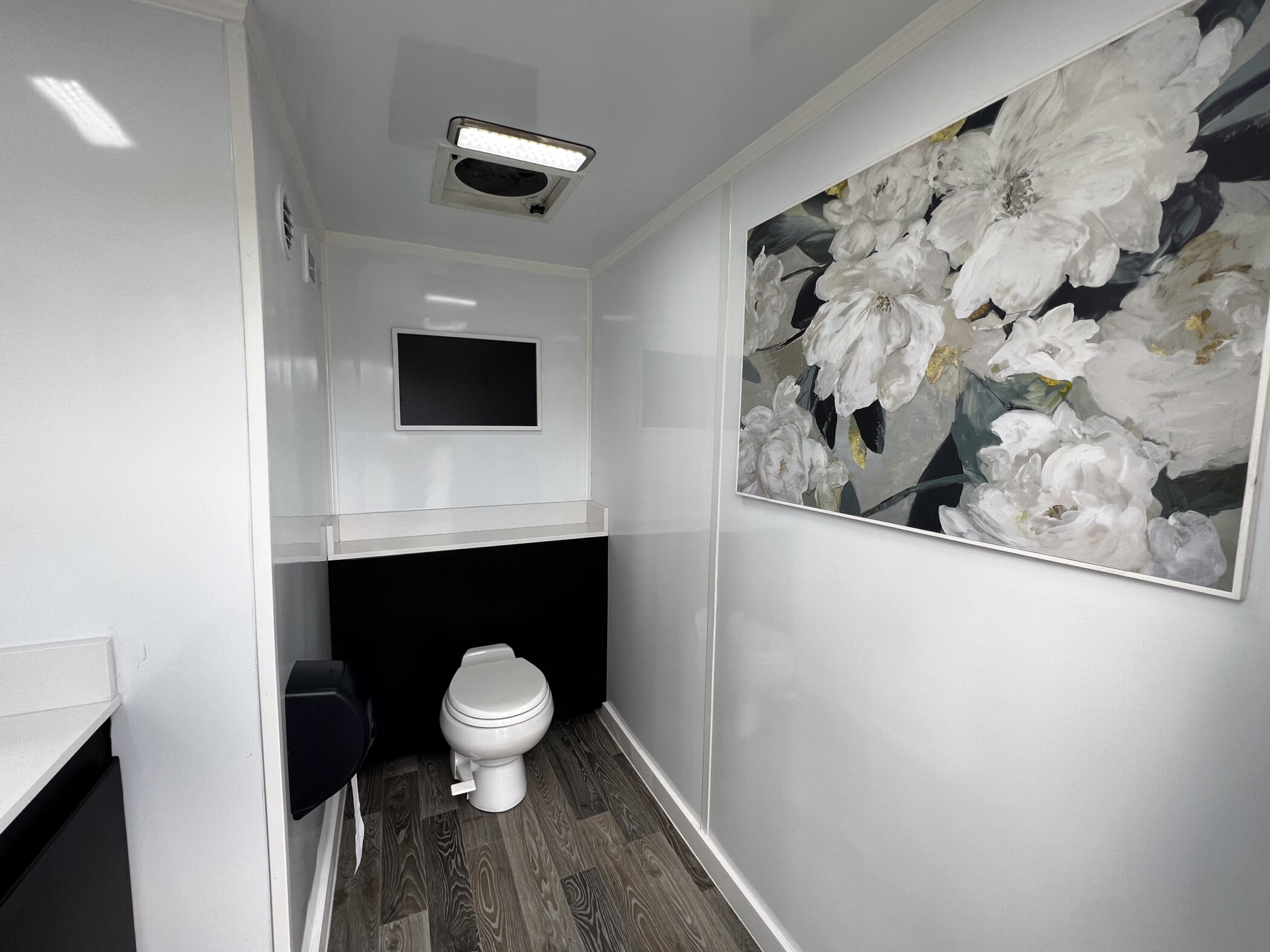

(1) Porcelain Toilet – Dometic Series 510

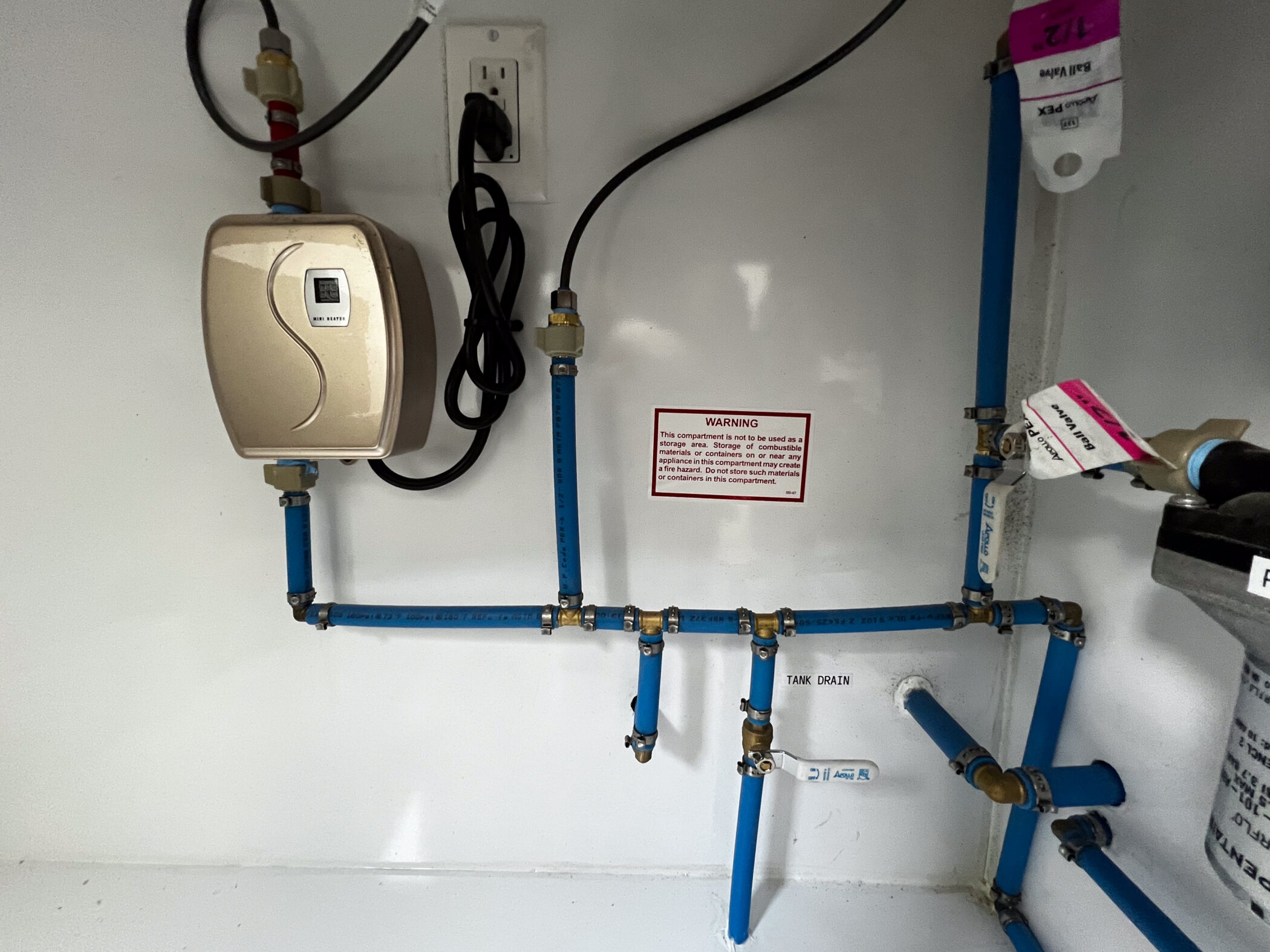

(1) Point of Use Water Heater

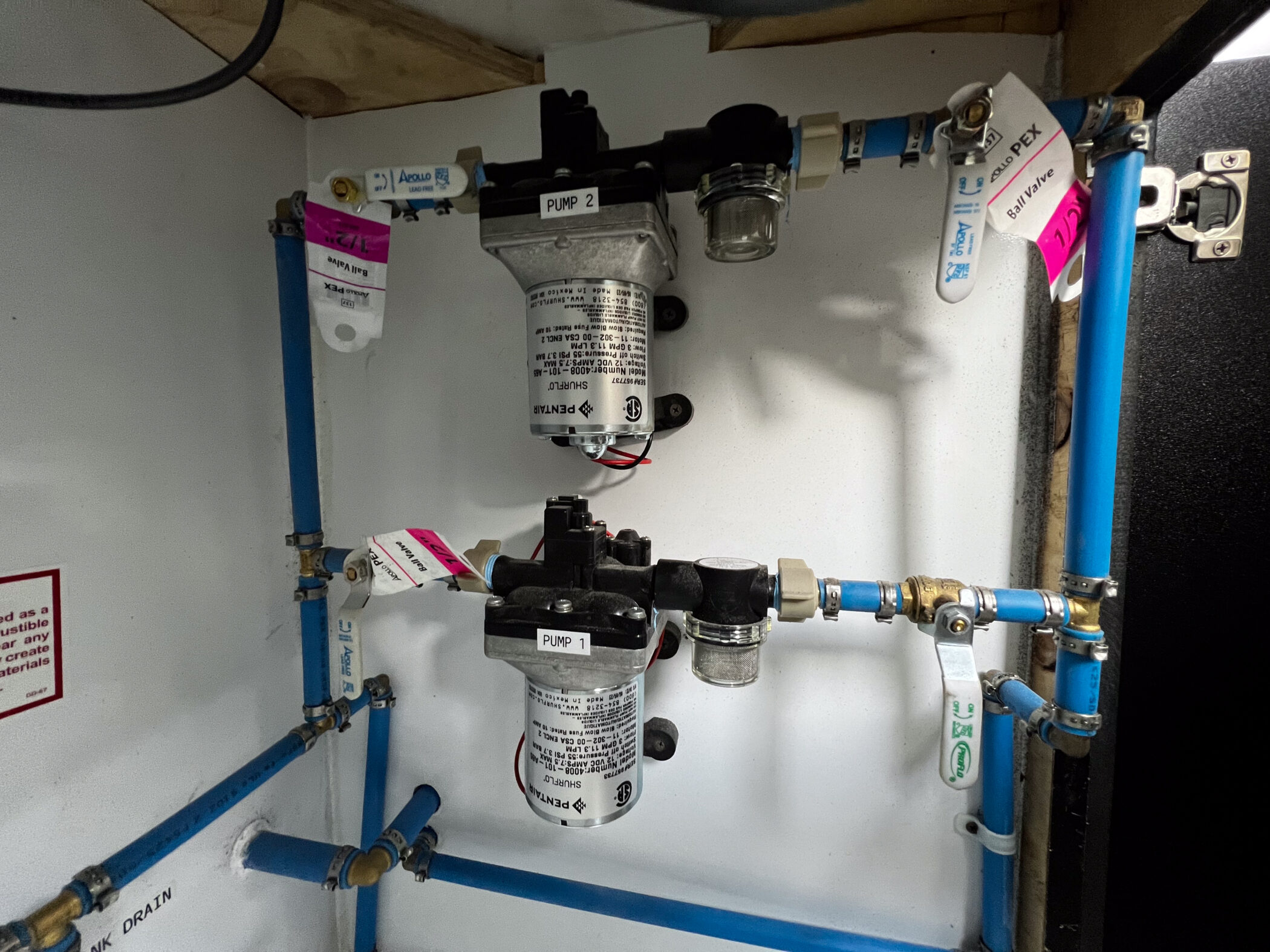

(2) 3 Gallon per Minute Water Pumps – For Redundancy
Brass Fittings
Pex Pipe Plumbing
Water Shutoff Valve – On All Fixtures
Pump Assisted Draining Valve Location for Draining Fresh Water Tank

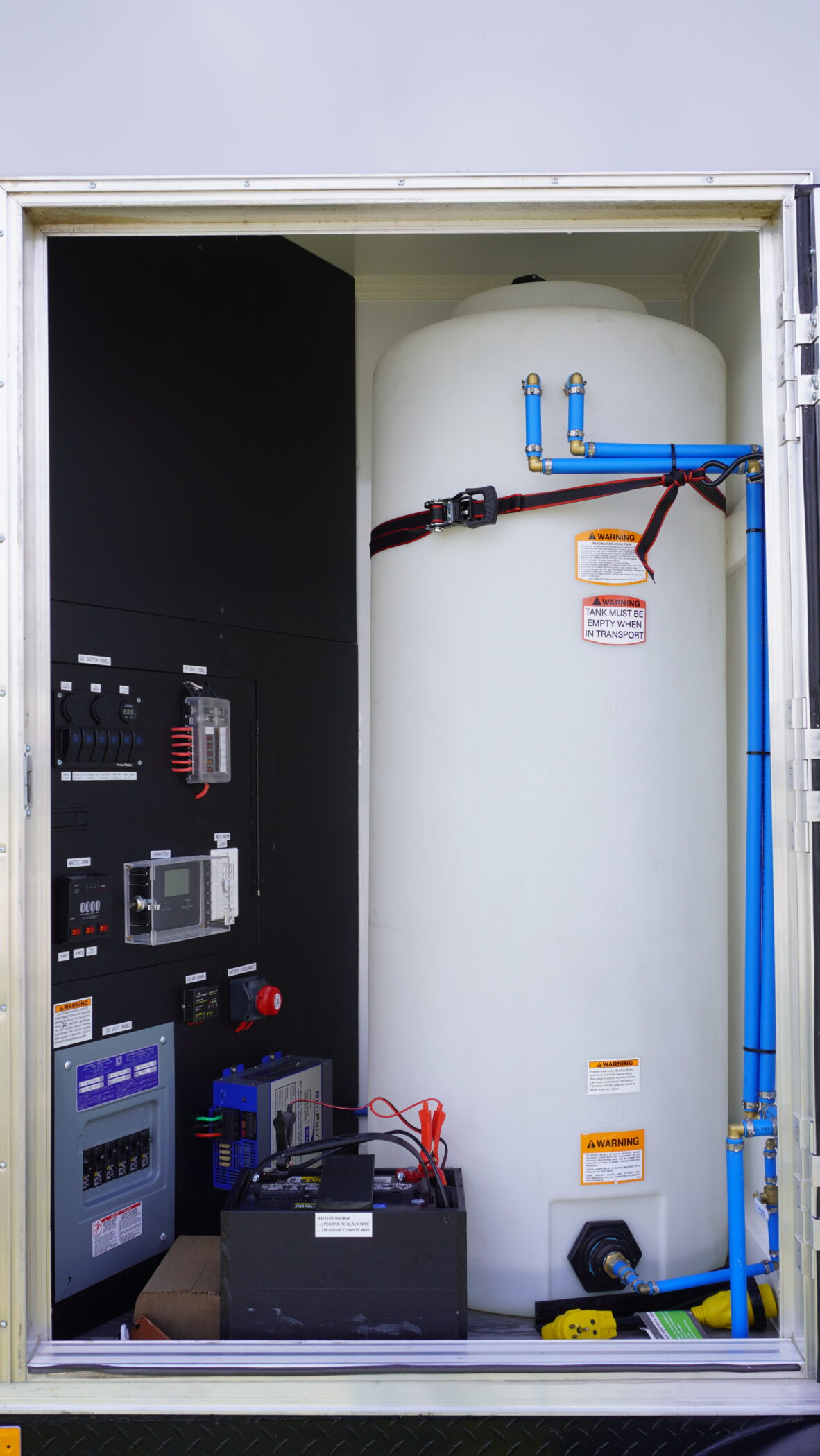

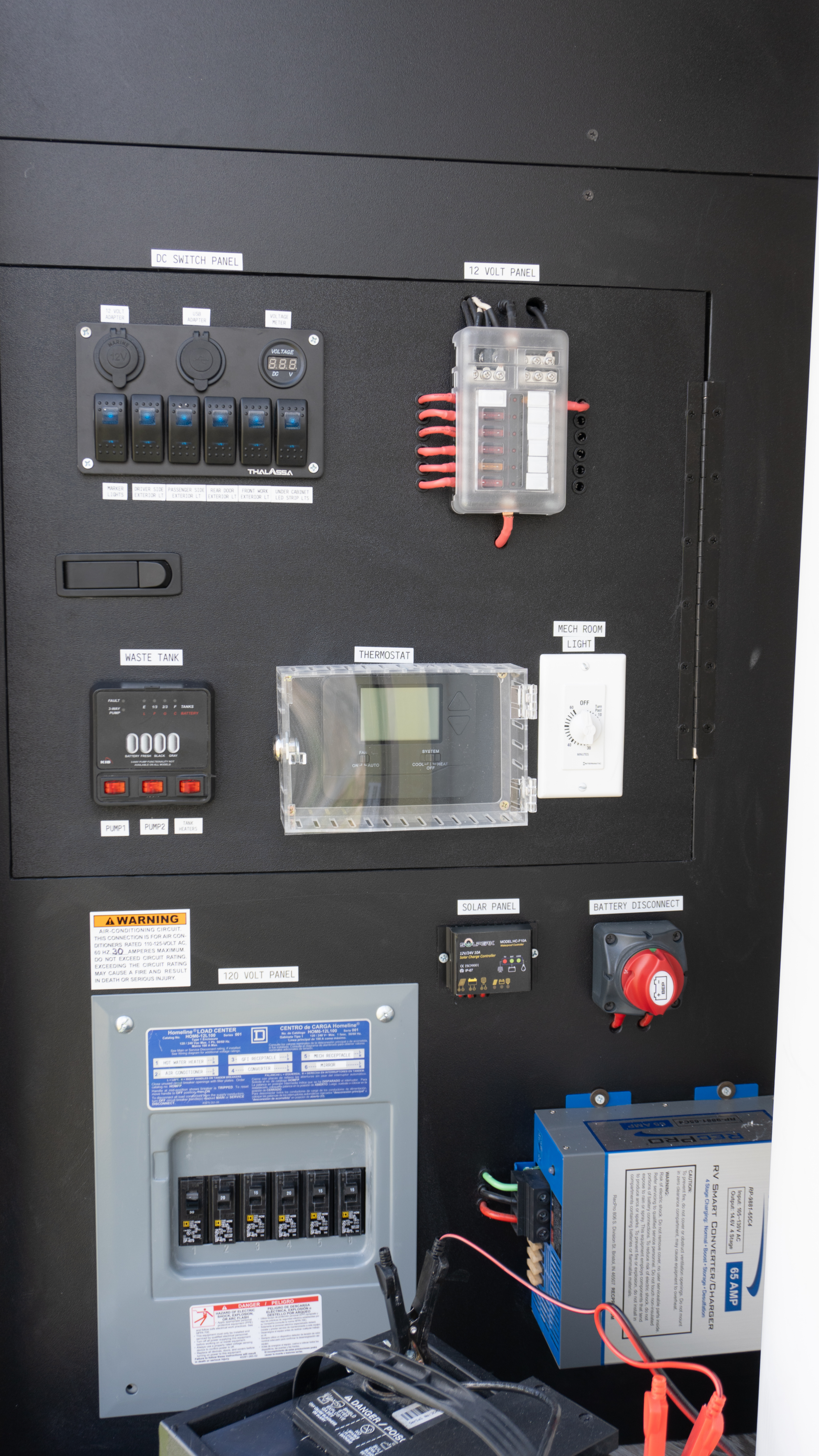

Mec. Room

12v Battery Disconnect Switch
Timed Light Mec. Room Light Switch
Fresh Water & Wasted Tank Capacity Monitor
2 – Way Pump Switch with Heater Control
Thermostat
Fuse Panel
Breaker Box
Solar Panel Converter
Quick Access Cover For Wiring

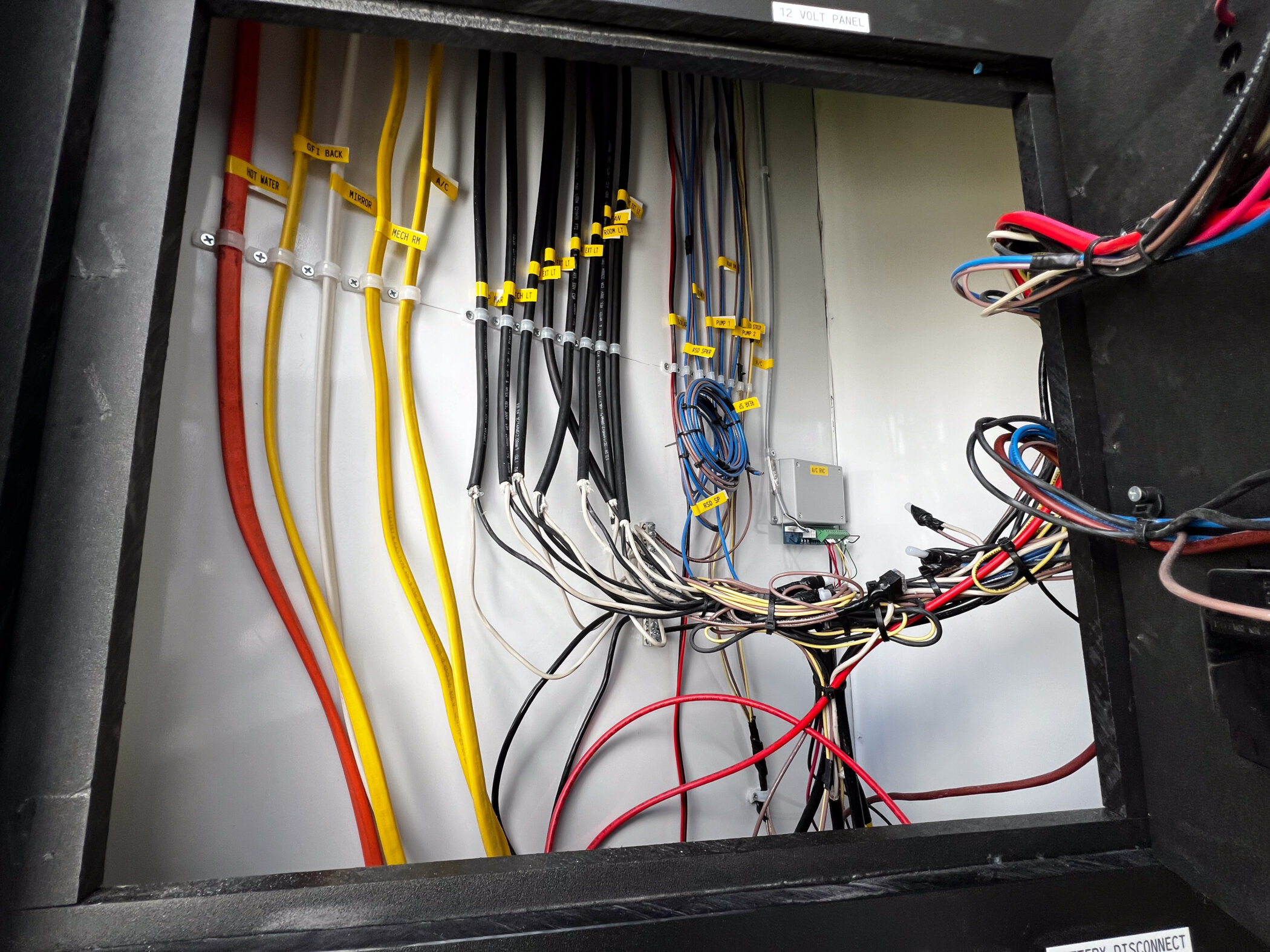

Labeled Wiring Behind the Quick Access Cover

Tanks

Fresh Water Tank – (1) 105 Gallon with Overflow Valve and Pump Assisted Draining
Waste Tank – (1) 200 Gallon Welded Co-Poly Tank
Industrial Dump Valve

Upgrades / options

Generator with Onboard Fuel Supply System
Bluetooth / AM / FM / CD / MP3 Stereo with Speakers
Self Leveling Stabilization Jack System
Electric Tongue Jack
Starlink Satellite Onboard Internet
Hookups – City Fill
Walls – Rivetless Aluminum Siding (Color Options Available)
Counter Tops – Butcher Block / Acrylic / Formica

Gross Length

13′

Box Length

8‘

Height

11’7″

GVWR

3,500 lbs

don't see an option that your looking for?

Tell us about what you’d like to have in your trailer!
